5A MPPT adjust output current/voltage module YH11087A



https://item.taobao.com/item.htm?_u=7boo1l33af8&id=42935368105&spm=a1z09.2.0.0.7fde2e8dj6p3hs

全新力做,5A降压恒压恒流模块,带MPPT功能，用太阳能电池板给电池充电可提升充电电流一倍以上，有效缩短充电时间，减小太阳能电池板体积。可为蓄电池、锂电池等充电，带转灯控制，方便观察充电状态。可配多功能电压表，输入电压、输出电压、输出电流、输出功率都可以直观显示，完全可脱离万用表使用。可做为大功率LED驱动模块。


 如需防反灌 理想二极管请点以下链接：

  8A   http://item.taobao.com/item.htm?id=42364220733

 15A  http://item.taobao.com/item.htm?id=42364220733

操作说明：





模块本身已带散热片，加大加粗大磁环电感温升更小，高频长寿命电解电容。


MPPT效果实测双比：


测试条件：18V/50W单晶太阳能板，7.4V/5AH锂电池，12月早晨10点左右在阳台。太阳不大，晒在身上暧暧的，防盗窗挡住了部分太阳。

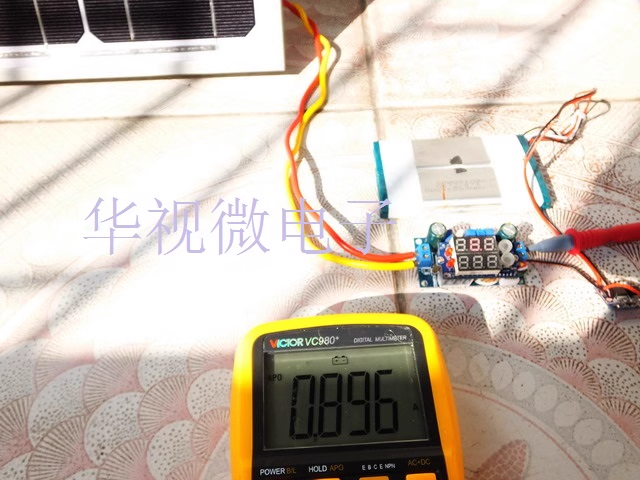

MPPT不起作用时的充电电流0.896A， （光线比较强，相机快门比较快，表头上数字在拍照片时显示会不全，懂点摄影的朋友应该都明白。)


MPPT值调至太阳能板最大功率点时的充电电流1.651A，提升近一倍的充电电流，效果相当明显。











需要外壳请点以下接：


http://item.taobao.com/item.htm?id=13621241047
